Single Wall Corrugated Pipe Extrusion Line

The single wall corrugated pipe extrusion line is mainly used for plastic single wall corrugated pipes.

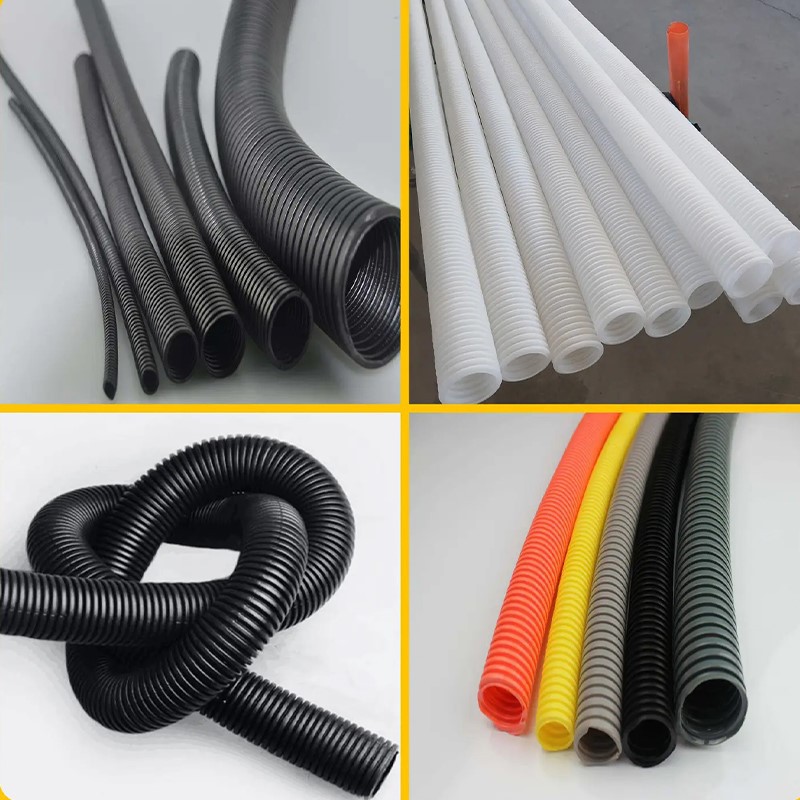

Plastic single wall corrugated pipes have the characteristics of high temperature resistance, corrosion resistance, wear resistance, high strength, and good flexibility. They are widely used in automotive wiring harnesses, electric wiring conduits, machine tool circuits, automotive protective tubes and other fields.

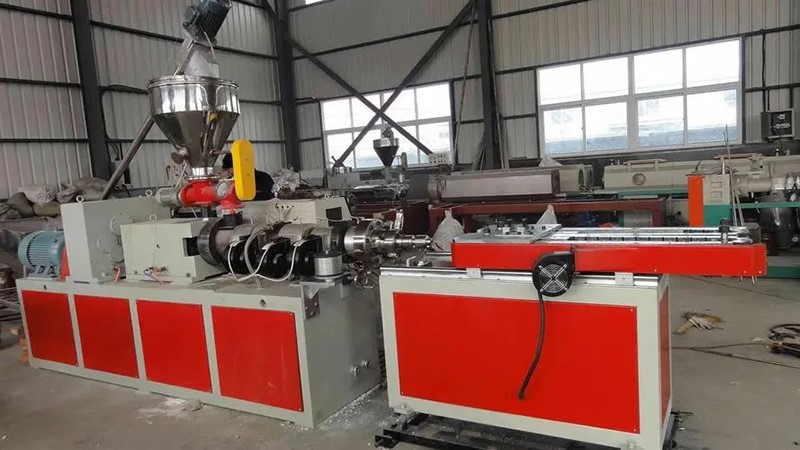

The single wall corrugated pipe extrusion line mainly consists of an extruder, a corrugated forming machine, a forming module, a coiler, and an electrical part. Each part is briefly described below.
1. Extruder: It adopts high-efficiency screw and hard-tooth gearbox to heat the raw materials more evenly, achieve good plasticization of the materials, and achieve high pipe extrusion speed.
2. Corrugated forming machine: It adopts a closed structure, and the modular connecting rods in the overall closed base run back and forth in the running channel.
3. Forming module: It is made of hard steel and adopts strict CNC finishing material processing to ensure the hardness and accuracy of the forming module, and the module replacement is easier and more convenient.

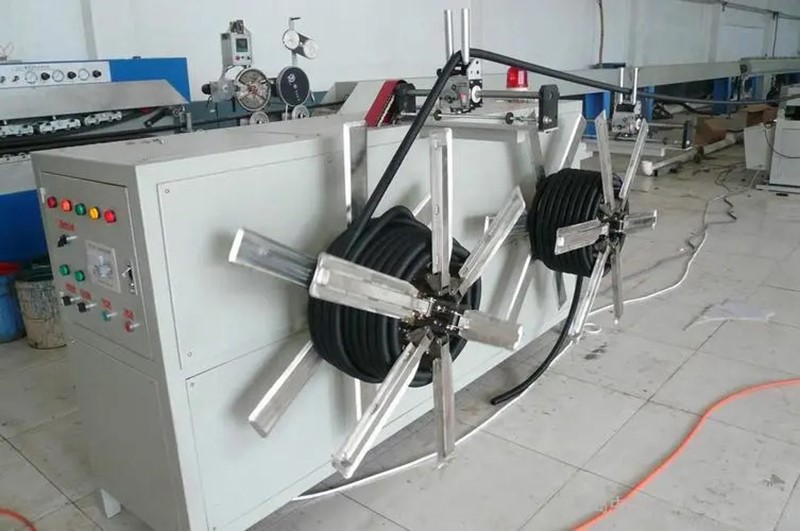

4. Coiler: You can choose a single-station or double-station machine with a torque motor.
5. Electrical part: using ABB frequency converter, Schneider contactor, RKC temperature controller, etc.

1. The mold block in the single wall corrugated pipe extrusion line adopts pressure water cooling technology, which greatly increases the production speed of pipes, and molds of different sizes can be easily and quickly converted, which also shortens the exchange interval.
2. The single wall corrugated pipe extrusion line adopts fully automatic operation, is simple to operate, and has the characteristics of low energy consumption, which helps to reduce production costs.
3. The efficient vacuum system of the single wall corrugated pipe extrusion line can form perfect pipes, and the modular temperature control system used also helps optimize the appearance and product quality of the pipes.
