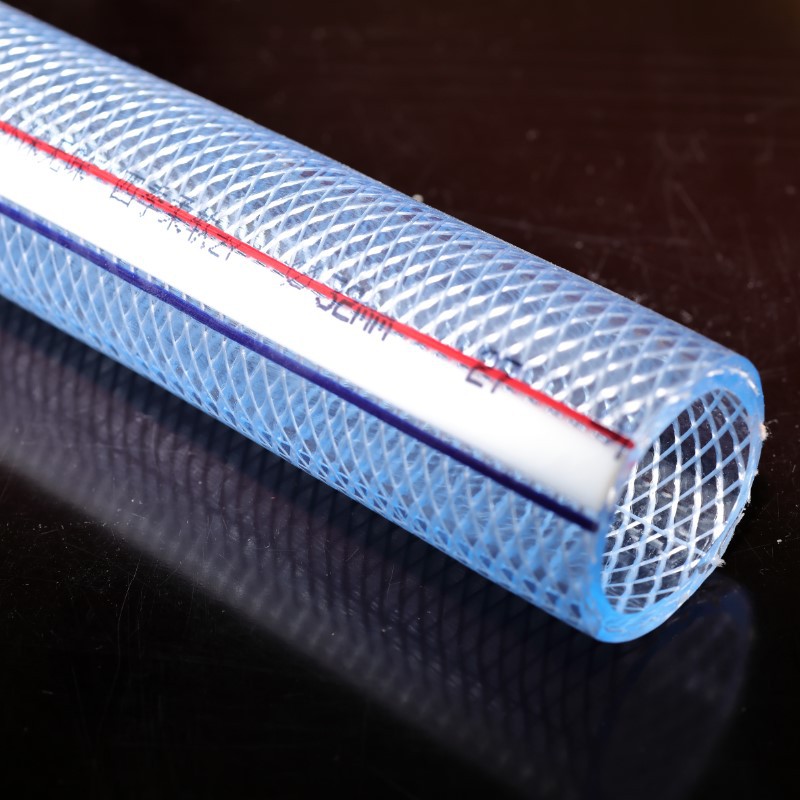

Standard PVC Fiber Reinforced Hose
Overview
Standard PVC fiber reinforced hose is a flexible and durable hose made from polyvinyl chloride (PVC) and reinforced with a braided polyester yarn. It is commonly used for conveying water, air, or other liquids and gases. The braided reinforcement provides the hose with higher working pressure capacity and kink resistance, making it ideal for applications that require a tighter bend radius. PVC fiber hose is often used in garden irrigation, construction sites, factories, and other industrial settings. It is available in different sizes, lengths, and colors to meet various application requirements.
Application
The Standard PVC fiber reinforced hose is widely used for conveying water, oil, gas under normal working condition in the factory, farm, ship, building and family.
Features
Standard PVC fiber reinforced hose is flexible, transparent, durable, non-toxic, without odor, anti-erosion and adaptable to high pressure condition. By adding colorful symbol lines on the surface of the hose, it looks more beautiful.
1. Flexible, transparent, durable, non-toxic, without odor
2. Anti-erosion and anti-abrasion
3. Adding colorful symbol lines on the surface of the hose to make it more beautiful
Working Temperature -10℃~80℃
PVC Fiber Reinforced Hose Specification Sheet
|
SIZE I.D |
O.D |
W.P |
B.P |
L |
W.T |
|
|
inch |
mm |
mm |
Bar / 23°C |
Bar / 23°C |
m/roll |
kg/m |
|
5/32" |
4.0 |
8 |
10 |
50 |
100 |
0.049 |
|
13/64" |
5.0 |
9 |
10 |
30 |
100 |
0.057 |
|
13/64" |
5.0 |
10 |
12 |
40 |
100 |
0.076 |
|
1/4" |
6.0 |
10 |
10 |
30 |
100 |
0.065 |
|
1/4" |
6.0 |
11 |
12 |
36 |
100 |
0.087 |
|
5/16" |
8.0 |
12 |
9 |
27 |
100 |
0.082 |
|
5/16" |
8.0 |
13 |
10 |
30 |
100 |
0.105 |
|
3/8" |
10.0 |
14 |
9 |
27 |
100 |
0.098 |
|
3/8" |
10.0 |
15 |
10 |
30 |
100 |
0.130 |
|
1/2" |
12.0 |
16 |
7 |
20 |
50 |
0.115 |
|
1/2" |
12.0 |
17 |
8 |
24 |
100 |
0.150 |
|
1/2" |
12.0 |
18 |
9 |
27 |
100 |
0.185 |
|
1/2" |
13.0 |
17 |
7 |
20 |
100 |
0.125 |
|
5/8" |
15.0 |
19 |
6 |
20 |
50 |
0.140 |
|
5/8" |
15.0 |
20 |
6 |
20 |
50 |
0.170 |
|
5/8" |
16.0 |
20 |
6 |
20 |
50 |
0.150 |
|
5/8" |
16.0 |
21 |
7 |
21 |
50 |
0.190 |
|
5/8" |
16.0 |
22 |
8 |
24 |
50 |
0.230 |
|
3/4" |
19.0 |
23 |
4 |
12 |
50 |
0.170 |
|
3/4" |
19.0 |
24 |
4 |
12 |
50 |
0.220 |
|
3/4" |
19.0 |
25 |
6 |
18 |
50 |
0.270 |
|
3/4" |
20.0 |
24 |
4 |
12 |
50 |
0.180 |
|
7/8" |
22.0 |
27 |
4 |
12 |
50 |
0.250 |
|
7/8" |
22.0 |
28 |
5 |
15 |
50 |
0.305 |
|
1" |
25.0 |
29 |
3 |
9 |
50 |
0.220 |
|
1" |
25.0 |
30 |
4 |
12 |
50 |
0.280 |
|
1" |
25.0 |
31 |
5 |
15 |
50 |
0.340 |
|
1.1/4" |
32.0 |
38 |
3 |
10 |
40 |
0.430 |
|
1.1/4" |
32.0 |
40 |
4 |
12 |
40 |
0.590 |
|
1.1/2" |
38.0 |
45 |
3 |
10 |
40 |
0.590 |
|
1.1/2" |
38.0 |
46 |
4 |
12 |
40 |
0.690 |
|
1.3/4" |
45.0 |
55 |
3 |
10 |
30 |
1.020 |
|
1.3/4" |
45.0 |
56 |
4 |
12 |
30 |
1.140 |
|
2" |
50.0 |
59 |
3 |
10 |
30 |
1.010 |
|
2" |
50.0 |
61 |
4 |
12 |
30 |
1.260 |
|
2" |
50.0 |
62 |
4 |
12 |
30 |
1.380 |
|
2.1/2" |
64.0 |
78 |
4 |
12 |
20 |
2.030 |
|
3" |
76.0 |
92 |
4 |
12 |
20 |
2.750 |
Usually, we add different material to ensure PVC hoses to work well under different conditions. PVC spring hoses include spiral steel wire reinforced hose, fiber & steel wire composite hose, anti-static steel wire hose, non-rolled steel wire reinforced hose, oil resistant steel wire hose, high/low temperature steel wire hose, food grade steel wire hose, etc. We can combine different performances to meet customer’s needs. If you are interested in our products, you can visit our store and check our product category.
Essential Details
|
Product Name |
Standard PVC Fiber Reinforced Hose |
Reinforcement |
Polyester Thread |
|
Place of Origin |
Weifang, Shandong, China |
Application |
Watering, garden watering irrigation |
|
Brand Name |
Sansenda |
||
|
Material |
PVC, fiber, and other chemical additions |
||
|
Tube & Cover |
PVC |
||
|
Reinforcing layer |
high-strength polyester industrial filament |
||
|
Specification |
1/4" to 11’’ or as customer’s requested |
||
|
Length/pcs |
20m, 50m, 100m or as customer’s requirements |
||
|
Tube thickness |
Min. 1mm or as customer’s requirements |
||
|
Standard |
SGS |
||
|
Color |
Various: Clear, blue, green, black, etc. |
||
|
Certification |
ISO9001/ISO14001/SGS |
||
|
Working pressure |
5Bar-20Bar |
||
Application: Applicable to industry, agriculture, fishery, factories and mines, construction engineering, home furnishing, etc., conveying liquid, gas, chemical, gasoline, diesel, etc.
Food grade standard PVC fiber reinforced hose: It meets the FDA standard of the United States, and it is the best hose for conveying milk, beverages, wines, jam and other foods with medical grade and food grade plasticizers free of phthalates.
High temperature resistant fiber reinforced hose: PVC and high-grade plasticizer are mixed and processed, and the instantaneous temperature reaches 150 ° C.
Low temperature resistant fiber reinforced hose: it can be used normally at - 40 ° C and is applicable to various low temperature environments.
Positive and negative pressure resistant steel wire fiber composite hose: made of spiral steel wire and high-strength polyester industrial filament, with good negative pressure resistance.
Supply Ability
Supply Ability: 70,000 Ton/Tons per Year
Packaging & delivery
Packaging Details: PE film, Plastic woven cloth or according to customer's request
Port: QINGDAO, China
