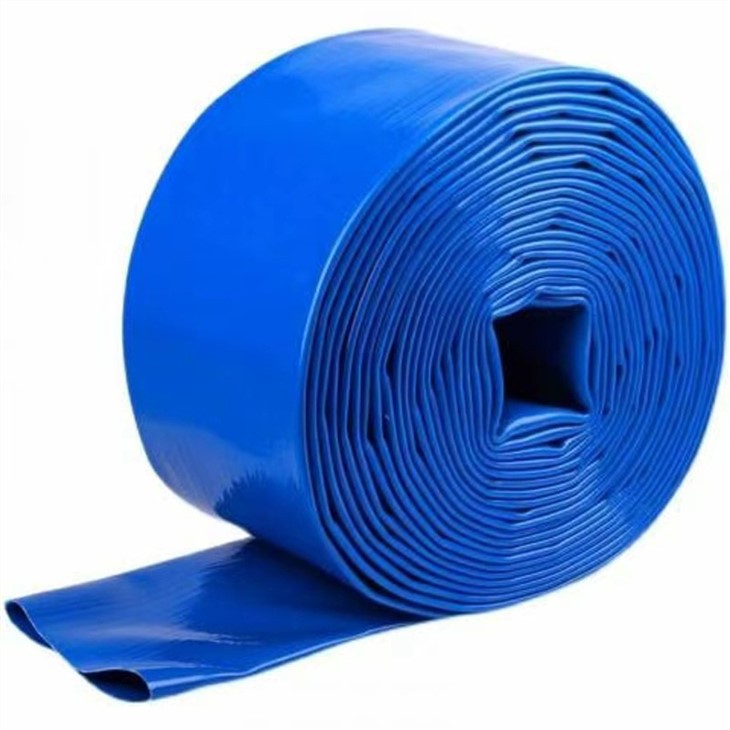

PVC Layflat Hose (8-10bar)
Overview
Features
This is one step injection molding lay flat water hose. The fiber reinforced layer embedded in this PVC layflat hose (8-10bar) is double-sided directional cross-wound. The product has the characteristics of resistance to breakage, high pressure resistance and small expansion ratio. Radial fibers are added to increase tensile strength.
1. Material:
Inner layer: NBR rubber compound; reinforcement layer: high-strength industrial polyester filament; outer layer: NBR rubber compound.
2. Pressure:
Working pressure: 12bar, burst pressure: 36bar
3. Temperature:
Working temperature: -20℃~80℃
Application
PVC layflat hose (8-10bar) is widely used as the accessories in agriculture irrigation and industries. Suitable for conveying liquid from low to extreme high pressure under low or medium temperature.
Working Temperature: -10℃~70℃
Heavy Duty (8-10Bar)
|
Inch |
ID |
mm |
MAX.W.P |
MAX.B.P |
g/m |
|
mm |
Bar (At23℃) |
||||
|
3/4" |
20 |
1.55 |
10 |
30 |
140 |
|
1" |
25 |
1.8 |
10 |
30 |
200 |
|
1.1/4" |
32 |
1.5 |
10 |
30 |
210 |
|
1.1/2" |
38 |
1.7 |
10 |
30 |
290 |
|
1.1/2" |
40 |
1.9 |
10 |
30 |
300 |
|
1.3/4" |
45 |
2 |
10 |
30 |
350 |
|
2" |
51 |
1.55 |
8 |
24 |
350 |
|
2" |
51 |
1.8 |
10 |
30 |
420 |
|
2.5" |
64 |
1.9 |
10 |
30 |
700 |
|
3" |
76 |
2 |
8 |
24 |
660 |
|
3" |
76 |
2.55 |
10 |
30 |
850 |
|
4" |
103 |
2.25 |
8 |
24 |
1000 |
|
4" |
103 |
2.7 |
10 |
30 |
1200 |
|
6" |
153 |
3 |
8 |
24 |
2000 |
|
8" |
203 |
3.2 |
8 |
24 |
2800 |
Essential Details
|
Product Name |
10bar max. water plastic layflat water hose |
Reinforcement |
Polyester Thread |
|
Place of Origin |
Weifang, Shandong, China |
||
|
Brand Name |
Sansenda |
||
|
Material |
PVC, fiber, other additions |
||
|
Specification |
1.2" to 8’’ or as customer’s requested |
||
|
Length |
10m, 20m, 30m or as customer’s requirements |
||
|
Thickness |
as customer’s requirements |
||
|
Standard |
SGS |
||
|
Color |
blue, green, red, black, etc. |
||
|
Certification |
ISO9001/ISO14001/SGS |
||
|
Working pressure |
8-10Bar Max. |
||
|
OEM |
Available |
||
Supply Ability
Supply Ability: 5000 Ton/Tons per Year
Packaging & delivery
Packaging Details: PE film, Plastic woven cloth or according to customer's request
Port: QINGDAO
Product Display




FAQ
Q1. Are you a manufacturer or trade company?
A1: We are manufacturer and there are 2 family factories in Weifang, Shandong province.
Q2. Can we use our own logo?
A: Yes, we can print your customized logo according to your request.
Q3. Is there sample available?
A3: Yes, we can provide you free samples for the hose products.
Q4. How long can I expect to get the sample?
A4: After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 1-3 days. The samples will be sent to you via express and arrive in 3-5 days.
