PVC Layflat Hose (6bar)
Overview
Features

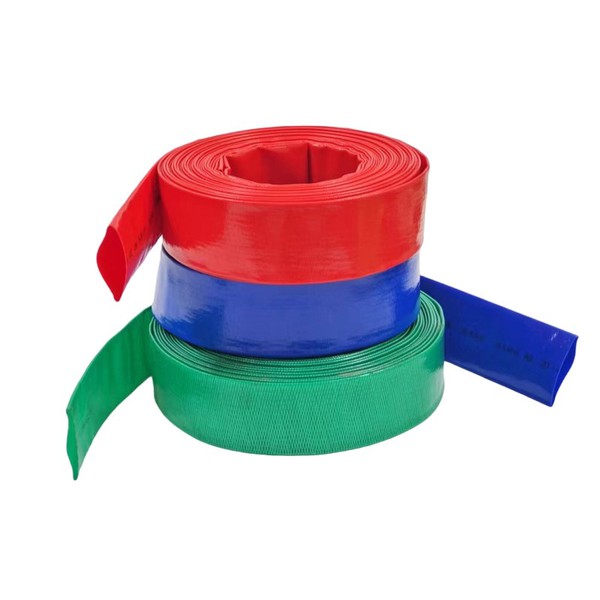

PVC layflat hose (6bar) is one step injection molding lay flat water hose.

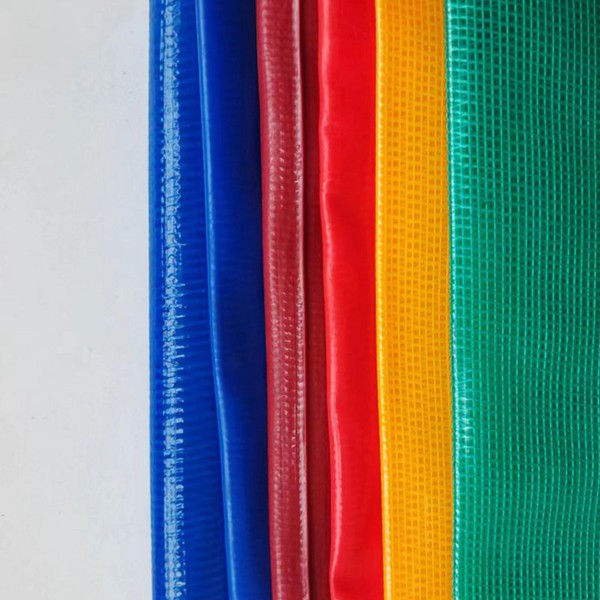

The fiber reinforced layer embedded in this PVC layflat hose (6bar) is double-sided directional cross-wound.
The PVC layflat hose (6bar) has the characteristics of resistance to breakage, high pressure resistance and small expansion ratio. Radial fibers are added to increase tensile strength.
Application
Wildly used as the accessories in agriculture irrigation and industries. Suitable for conveying liquid from low to high pressure under standard temperature.
PVC layflat hose (6bar) is widely used in shale oil and gas drilling and fracturing water transportation, emergency water transportation for emergency rescue and disaster relief, fast water supply for firefighting, river dredging projects, industrial wastewater transportation, etc. It is an essential fire hose.
Working Temperature: -10℃~70℃
Essential Details
|
Product Name |
6 bar water plastic layflat hose |
Reinforcement |
Polyester Thread |
|
Place of Origin: |
Shandong, China |
||
|
Brand Name: |
Sansenda |
||
|
Material: |
PVC + Other additions |
||
|
Specification: |
1.2" to 8’’ or as customer’s requested |
||
|
Length: |
30m, 50m or as customer’s requirements |
||
|
Thickness: |
as customer’s requirements |
||
|
Standard |
SGS |
||
|
Color: |
blue, green, red, black, etc. |
||
|
Certification: |
ISO9001/ISO14001/SGS |
||
|
Working pressure: |
6Bar Max. |
||
Medium Duty (6Bar)
|
Inch |
ID |
mm |
MAX.W.P |
MAX.B.P |
g/m |
|
mm |
Bar (At23℃) |
||||
|
3/4" |
20 |
1.35 |
7 |
21 |
110 |
|
1" |
25 |
1.3 |
7 |
21 |
160 |
|
1.1/4" |
32 |
1.2 |
7 |
21 |
190 |
|
1.1/2" |
38 |
1.2 |
7 |
21 |
220 |
|
1.1/2" |
40 |
1.4 |
6 |
18 |
225 |
|
2" |
51 |
1.35 |
6 |
18 |
300 |
|
2.5" |
64 |
1.55 |
6 |
18 |
430 |
|
3" |
76 |
1.5 |
6 |
18 |
500 |
|
4" |
103 |
1.9 |
6 |
18 |
800 |
|
5" |
127 |
2 |
6 |
18 |
1080 |
|
6" |
153 |
2.4 |
6 |
18 |
1600 |
|
8" |
203 |
2.6 |
5 |
15 |
2200 |
Supply Ability
Supply Ability: 15000 Ton/Tons per Year
Packaging & delivery
Packaging Details: PE film, Plastic woven cloth or according to customer's request
Port: QINGDAO
