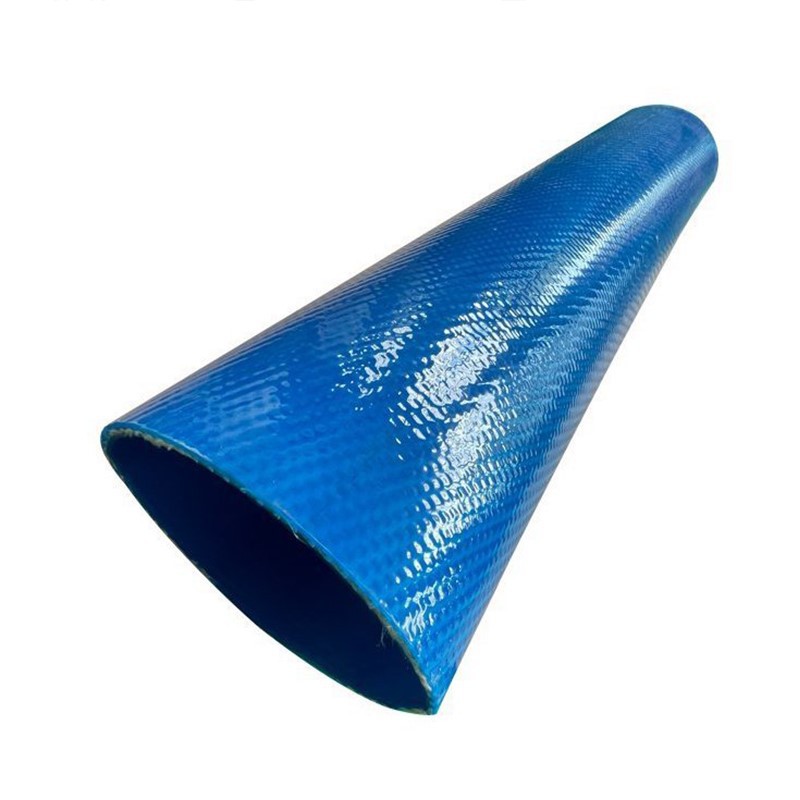

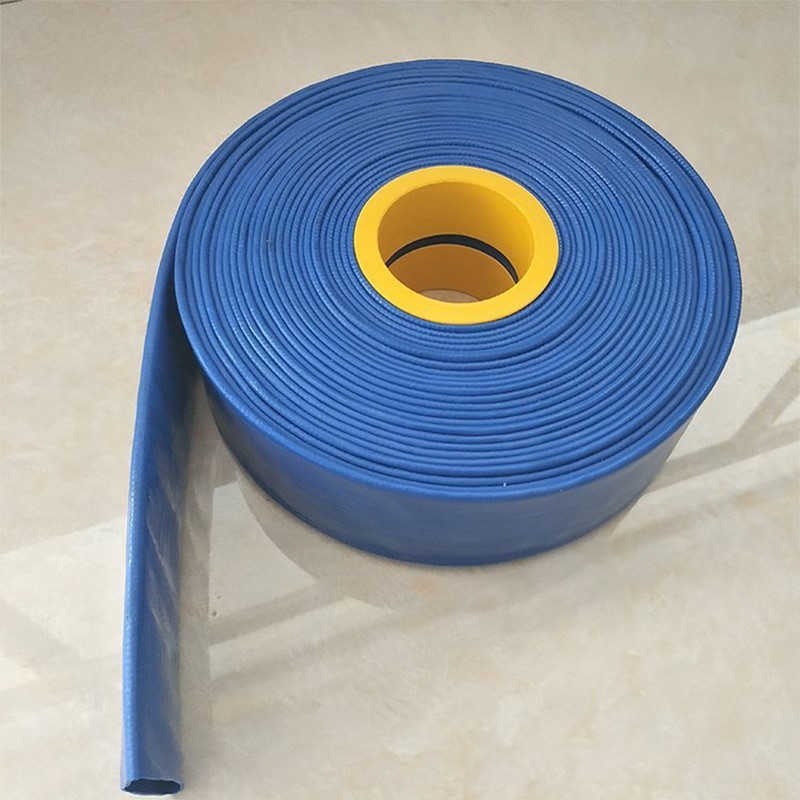

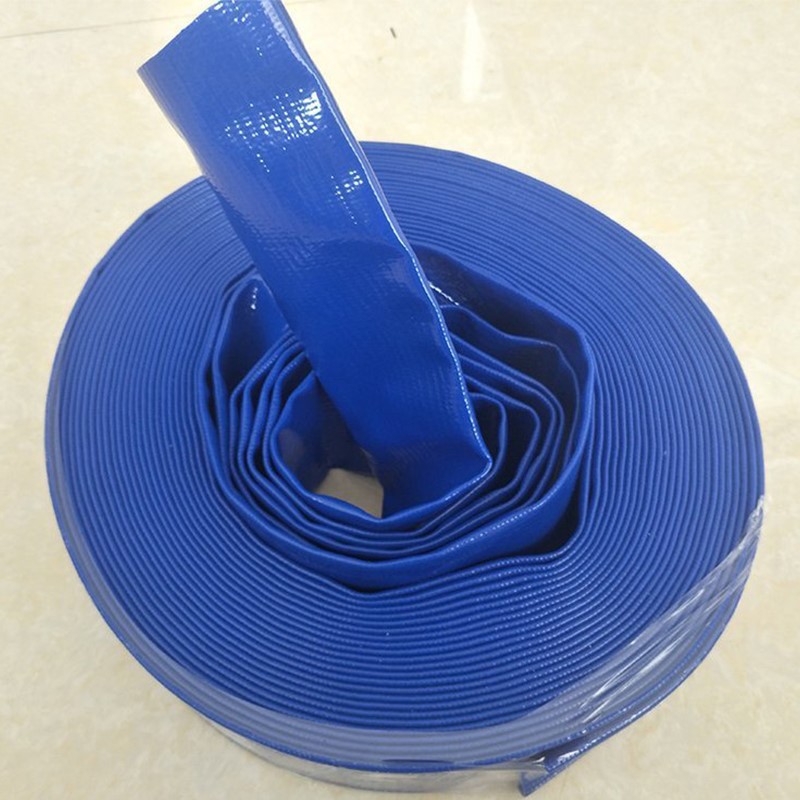

3 Lay Flat Hose
The 3 lay flat hose is composed of a three-layer structure of inner rubber, reinforcement layer, and outer rubber. The inner and outer rubber of the hose are made of TPU material. Using an advanced one-time extrusion process, the TPU material is coated on the inside and outside of the high-strength industrial polyester reinforcement layer.
The three-layer structure of the 3 lay flat hose is completely integrated, allowing the product to achieve high pressure resistance, high wear resistance, low elongation, hydrolysis resistance, UV resistance, bacteria resistance, aging resistance, etc., and the hose can be flattened It is rolling, flexible, and easy to assemble. It can be widely used for large-flow liquid transportation in various complex terrains, and can quickly solve water supply and drainage problems in emergency situations.
Use:
The 3 lay flat hose can be used in oil field water supply, mine rescue, oil transportation, emergency drainage, fire remote water supply, agricultural irrigation, industrial wastewater transportation and other fields.
Product parameters:
| Name | 3 Lay Flat Hose |
| Material | Inner layer: super wear-resistant and hydrolysis-resistant TPU Reinforcement layer: high strength industrial polyester filament Outer layer: super wear-resistant and hydrolysis-resistant TPU |
| Pressure | Working pressure: 13bar Burst pressure: 39bar |
| Queen | 153*203 |
| Working temperature | -50℃～+80℃ |
| Length | 200 meters, other lengths can be customized. |
| Color | Black, blue, red, other colors can be customized. |
| Accessories | LDHC series quick connectors, BAND-IT prefabricated clamps, grooved clamps |
product specifications
| Inner diameter | Wall thickness (mm) | Weight (kg) | Working pressure (BP) | Burst pressure (WP) |
| 4"( 100mm) | 3.2 | 3.8 | 15bar | 45bar |
| 5"(125mm) | 3.5 | 3.8 | 15bar | 45bar |
| 6"( 150mm) | 3.6 | 3.8 | 15bar | 45bar |
| 7"(175mm) | 4.0 | 3.8 | 15bar | 45bar |
| 8"( 200mm) | 4.2 | 3.8 | 13bar | 39bar |
| 10"( 250mm) | 4.8 | 4.5 | 13bar | 39bar |
| 12"(300mm) | 5.2 | 5.0 | 10bar | 30bar |
